Features
1. The fixed design is convenient for taking noodles and refilling, which greatly improves the efficiency. Timing setting in the range of 0-30 minutes, equipped with high-quality stainless steel noodle bucket, reinforced noodle kneading hook and noodle bar, compact and reasonable in structure, the noodle kneading bucket and noodle hook rotate at the same time, the noodle kneading is even and thorough, and the chain drive is adopted Low working noise.

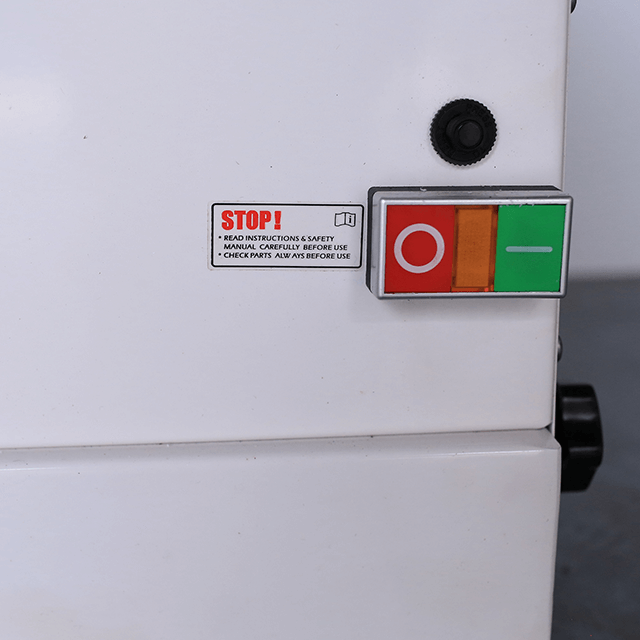

2. Safety protection: (safe state protection device, barrel cover stop l protection device, emergency stop switch design) (24V safety switch) (casters)(optional).
Production Features

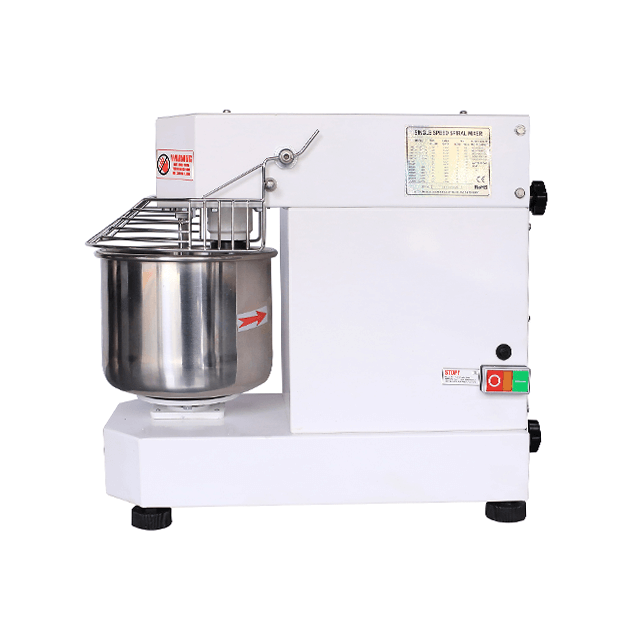

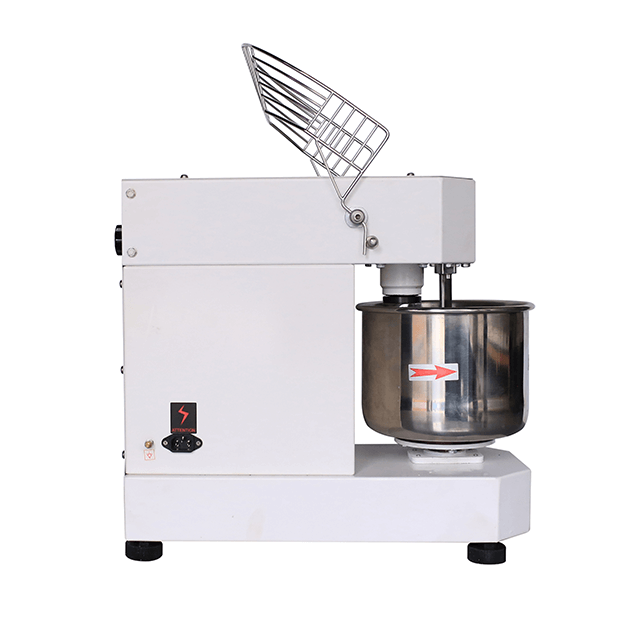

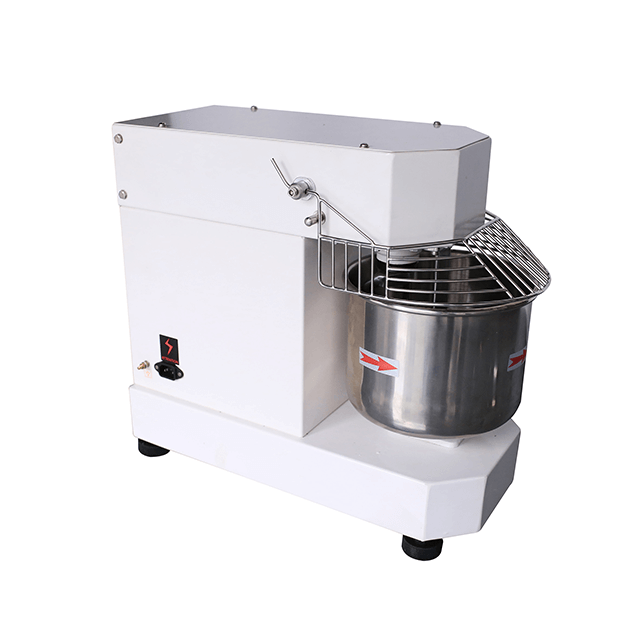

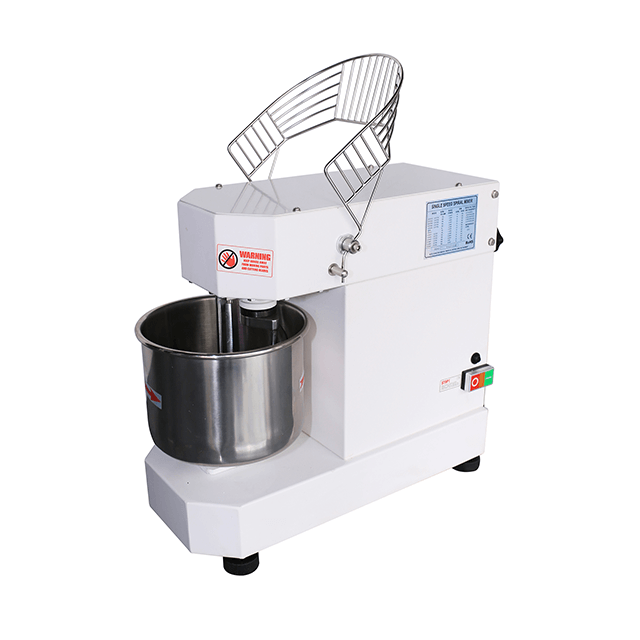

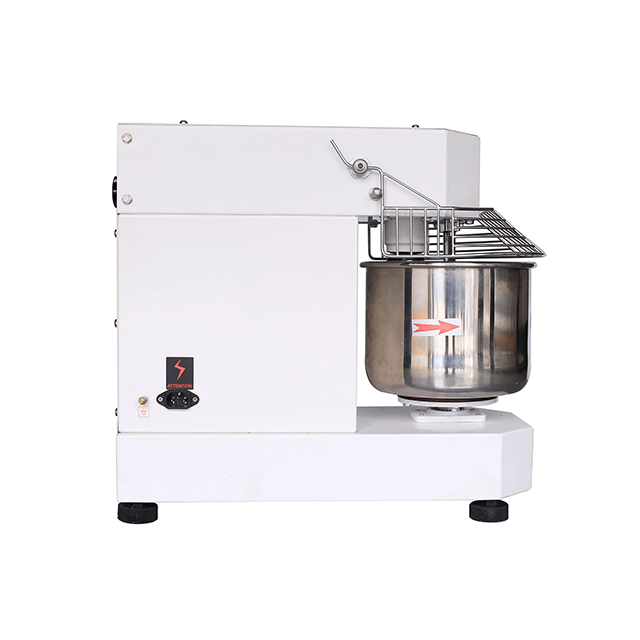

AS-DN5, 5L fixed single-speed double-action dough mixer, the part of the product in contact with food is made of 304 stainless steel, the surface is sprayed with high temperature powder to prevent rust, and the belt is imported from Japan KO or South Korea Samsung.
Motor output power: 0.5KW, 220V.
Noodle drum speed: 18 rpm, noodle hook speed: 90 rpm.
Open hood stop function. With 30 minutes time control function.
The circuit of the whole machine adopts 24V low-voltage control to maximize the protection of electrical appliances.
Rated and flour quantity: 2KG flour, the fastest 7 minutes out of the dough.
Model | Bowl Capacity (L) | Voltage (V) | Power (KW) | Bowl Speed (r/min)
| Hook Speed (r/min)
| Flour Capacity (KG) | Packing Dimension (cm) |
AS-DN5 |
5 |
220V/50HZ |
0.3 |
18 |
161 |
2 |
55*37*63 |
