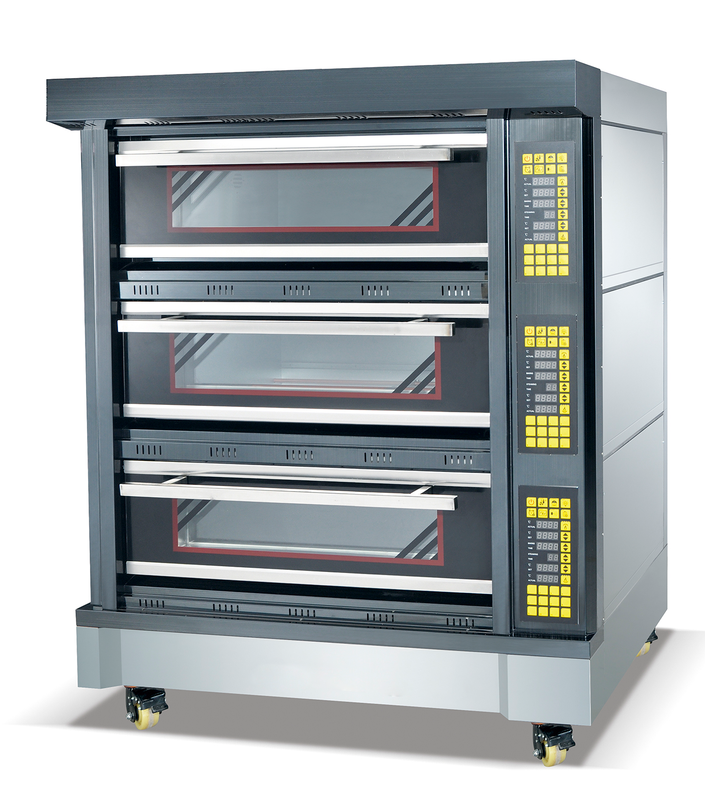

The new Fashion Black Titanium Oven Series are elaborated by designer team.
High-quality stainless steel panel, perspective glass window.
Simple operation:upper fire and bottom fire can be controlled separately.Uniform temperature.
Suitable for natural gas or liquefied gas.
To ensure safety of using, there is an accidental extinguishing device. If there is a firing failure, flame-out or gas using up, the mechanism will turn off the gas value automatically in 0.45 second with the flashing light and voice warning at the same time.
Stone is optional for pizza baking.
| Model | Specification | Dimension(mm) | Chamber size(mm) | Power | Voltage | Power consumption |
| HTC-101D | 1 deck 1 trays | 945*605*485 | 640*455*180 | 3.2kw | 220V | 3.2kw/h |
| HTC-202D | 2 deck 2 trays | 945*605*815 | 640*455*180 | 6.4kw | 220V | 6.4kw/h |
| HTC-20D | 1 deck 2 trays | 1220*820*575 | 860*640*230 | 6.6kw | 220V/380V | 6.6kw/h |
| HTC-40D | 2 deck 4 trays(with shelf) | 1220*820*1310 | 860*640*230 | 13.2kw | 380V | 13.2kw/h |
| HTC-40D | 2 deck 4 trays(no shelf) | 1220*820*1120 | 860*640*230 | 13.2kw | 380V | 13.2kw/h |
| HTC-60D | 3 deck 6 trays | 1220*820*1530 | 860*640*230 | 19.8kw | 380V | 19.8kw/h |
The new Fashion Black Titanium Oven Series are elaborated by designer team.
High-quality stainless steel panel, perspective glass window.
Simple operation:upper fire and bottom fire can be controlled separately.Uniform temperature.
Suitable for natural gas or liquefied gas.
To ensure safety of using, there is an accidental extinguishing device. If there is a firing failure, flame-out or gas using up, the mechanism will turn off the gas value automatically in 0.45 second with the flashing light and voice warning at the same time.
Stone is optional for pizza baking.
| Model | Specification | Dimension(mm) | Chamber size(mm) | Power | Voltage | Power consumption |
| HTC-101D | 1 deck 1 trays | 945*605*485 | 640*455*180 | 3.2kw | 220V | 3.2kw/h |
| HTC-202D | 2 deck 2 trays | 945*605*815 | 640*455*180 | 6.4kw | 220V | 6.4kw/h |
| HTC-20D | 1 deck 2 trays | 1220*820*575 | 860*640*230 | 6.6kw | 220V/380V | 6.6kw/h |
| HTC-40D | 2 deck 4 trays(with shelf) | 1220*820*1310 | 860*640*230 | 13.2kw | 380V | 13.2kw/h |
| HTC-40D | 2 deck 4 trays(no shelf) | 1220*820*1120 | 860*640*230 | 13.2kw | 380V | 13.2kw/h |
| HTC-60D | 3 deck 6 trays | 1220*820*1530 | 860*640*230 | 19.8kw | 380V | 19.8kw/h |
